COMP4136 Security & Data Protection — Notes

1. Data Protection Plan

Five Key Steps

1. Risk Assessment
   • Calculate risk priority: Risk = Asset Value × Probability of Loss.
   • List assets, potential losses, and vulnerabilities.
2. Security Policy — define roles, acceptable risks, and improvement strategies.
3. Implementation Plan — deploy firewalls, encryption, and access controls.
4. Security Organization — train staff and establish a dedicated security team.
5. Security Audit — regular compliance checks and vulnerability assessments.

Security Considerations

• Factors: New tech, policies, standards, cost vs. loss, weakest link focus.
• Trade-offs:
  • Security vs. Ease of Use: Stronger measures can slow operations (e.g., 2FA delays).
  • Security vs. Privacy: Monitoring improves detection but reduces anonymity.

2. Security Dimensions

3. Encryption & Cryptography

Symmetric vs Asymmetric

Digital Envelope

1. Encrypt data with symmetric key (AES).
2. Encrypt that key with recipient's public key (RSA).
3. Send both ciphertexts.

PKI (Public Key Infrastructure)

• CA: issues certificates.
• Digital certificate: binds identity to a public key.
• RA: registration authority verifies applicants.

SSL/TLS Handshake (summary)

1. ClientHello (algorithms + random).
2. ServerHello (certificate + random).
3. Key exchange (pre-master encrypted).
4. Derive session keys (symmetric).
5. Verify integrity (MACs / AEAD).

4. Threats & Mitigations

Backdoor / Adversarial Attacks

Poisoning or input manipulation — defend with data purification and model hardening (e.g., adversarial training, input sanitization).

Bot Attacks

Good bots (search) vs bad bots (DDoS, scrapers). Mitigations: CAPTCHA, IP/geo-blocking, Cloud WAF, rate limiting.

5. Legal & Compliance

• Authentication: digital certificates for provenance.
• Report integrity: use SHA-256 hashing to detect tampering.
• Non-repudiation: XML signatures and timestamps where needed.

6. Advanced Topics

XML Schema & Non-Repudiation

W3C Reference: XML Schema

Public Key Cryptography Workflow

1. Encrypt plaintext with recipient’s public key.
2. Transmit ciphertext.
3. Decrypt using recipient’s private key.

Digital Watermarking (techniques focus)

Definition & Purpose

A digital watermark embeds an identifier into a carrier (image/audio/video) for authentication, copyright protection, or tracking.

Key Properties

• Imperceptibility — invisible to users
• Robustness — survives compression/attacks
• Fragile — useful for tamper detection
• Capacity and Speed

Techniques — Spatial Domain

LSB Substitution

Replace least-significant bits of pixels with watermark bits. Simple and fast but fragile (lossy compression destroys it).

Patchwork

Statistically alter random patch brightness pairs; more robust to simple noise but weak to geometric transforms.

Techniques — Frequency Domain

DCT-Based

Divide image into 8×8 blocks, embed in mid-frequency DCT coefficients — robust to JPEG compression.

DWT-Based

Decompose image into sub-bands (LL, LH, HL, HH); embed in LL for robustness or HH for invisibility.

Spread Spectrum

Embed pseudo-random noise across coefficients — very robust but more complex.

Attacks & Countermeasures

• Collusion: average copies — use robust frequency-domain methods.
• Lossy compression: embed in mid-frequency DCT coefficients.
• Geometric attacks: use DWT or registration markers.

Pattern Recognition for Biometrics — Techniques

Pipeline

1. Segmentation — isolate the region of interest (e.g., iris, fingerprint).
2. Feature extraction — reduce raw data to discriminative descriptors.
3. Classification / matching — compare templates and decide.

Common Techniques (short)

• k-NN: distance-based, simple; good for small-scale template matching.
• K-Means: unsupervised clustering for grouping similar samples.
• Gabor filters: texture extraction (useful for iris, fingerprint enhancement).
• Hamming distance: common for binary codes (e.g., iris codes).

Bayesian Decision Theory (exam keywords)

Posterior: P(ω_i | x) = p(x | ω_i) P(ω_i) / p(x). Decision rule: choose class with highest posterior. Useful for threshold tuning (FAR / FRR trade-off).

Practical Notes & Examples (quick)

• Fingerprint: use Gabor filters → binarize → thin → extract minutiae (endings, bifurcations).
• Iris: normalize (rubber-sheet), apply Gabor filters, quantize phase → produce iris code → match with Hamming distance.
• Watermarking: for JPEG images prefer DCT mid-frequency embedding.
• Evaluation: ROC, FAR/FMR, FRR/FNMR, decidability index d'.

Biometric Systems

Definition

Automated identification using physiological (fingerprint, iris) or behavioral (gait, voice) traits.

Desired Properties

• Universality, Distinctiveness, Permanence, Collectability
• Performance, Acceptability, Robustness to Circumvention

System Components

1. Acquisition
2. Feature Extraction
3. Matching
4. Decision

Operating Modes

Errors in Identification

Confusion Matrix

Biometric Modalities Notes

Accuracy ranking: DNA > Retina > Iris

DNA

• Uniqueness: only ~0.1% differs; forensic profiling.
• Pros: permanent, highly accurate; Cons: privacy, slow, contamination risk.

Ear

• Stable 3D shape; segmentation → matching.
• Challenges: hair occlusion; may require IR.

Thermogram

• Heat emission patterns; non-invasive.
• Challenges: sensor cost, environment sensitivity.

Fingerprint

• Ridges/valleys; common and accurate.
• Challenges: dry fingers, sensor noise, social acceptance.

Gait

• Distance-friendly; behavioral; low security due to variability.

Face

• High acceptance; affected by aging, expression, accessories.

Keystroke

• Typing rhythm; unobtrusive but variable.

Odor

• VOC-based; experimental and environment-sensitive.

Voice

• Convenient; noise-sensitive; lower distinctiveness at scale.

Retinal Scan

• Unique vessel pattern; invasive; low acceptance.

Iris

• Highly distinctive; requires cooperation; NIR illumination.

Hand Geometry, Vein, Signature

• Hand: simple but low distinctiveness.
• Vein: stable, fast, needs IR.
• Signature: accepted legally; forgeable.

Other & Emerging Biometrics

Physiological (less common)

Otoacoustic emissions, skin spectrum, lips movement, nailbed, knuckle creases, acoustic reflections, skin impedance, hand pressure profile, dental radiograph, bone transmission, bioelectric field, eye movement, finger wrinkles, dynamic grip, corneal topography, 3D finger, EEG.

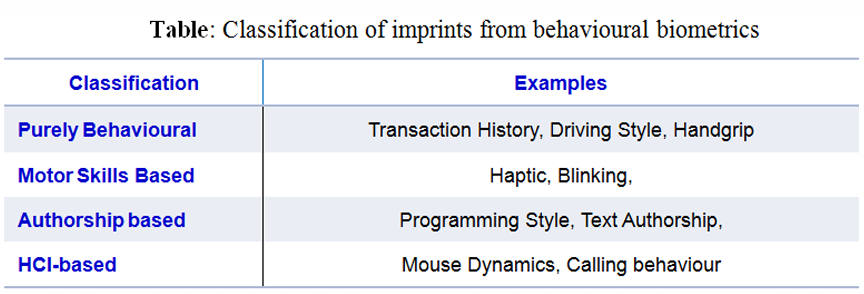

Behavioral Biometrics

Purely behavioral (transactions), motor skills (grip), authorship (programming style), HCI (mouse/keystroke, touch patterns).

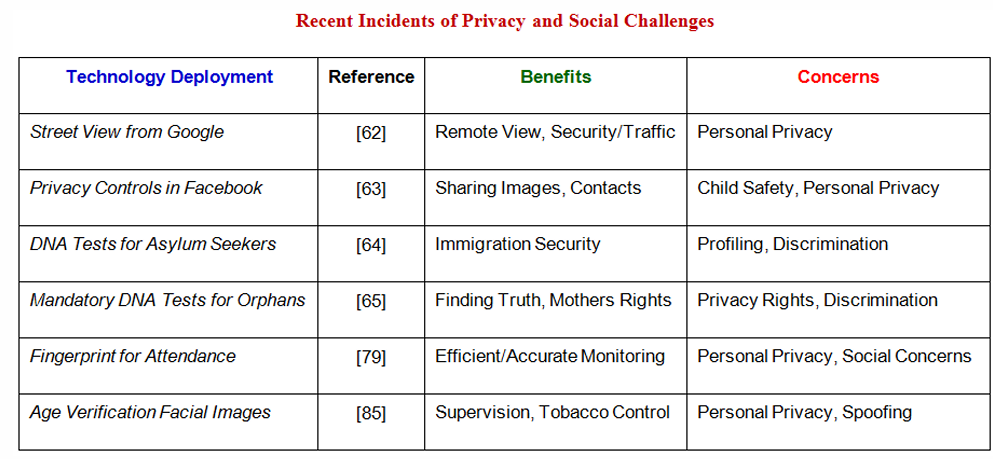

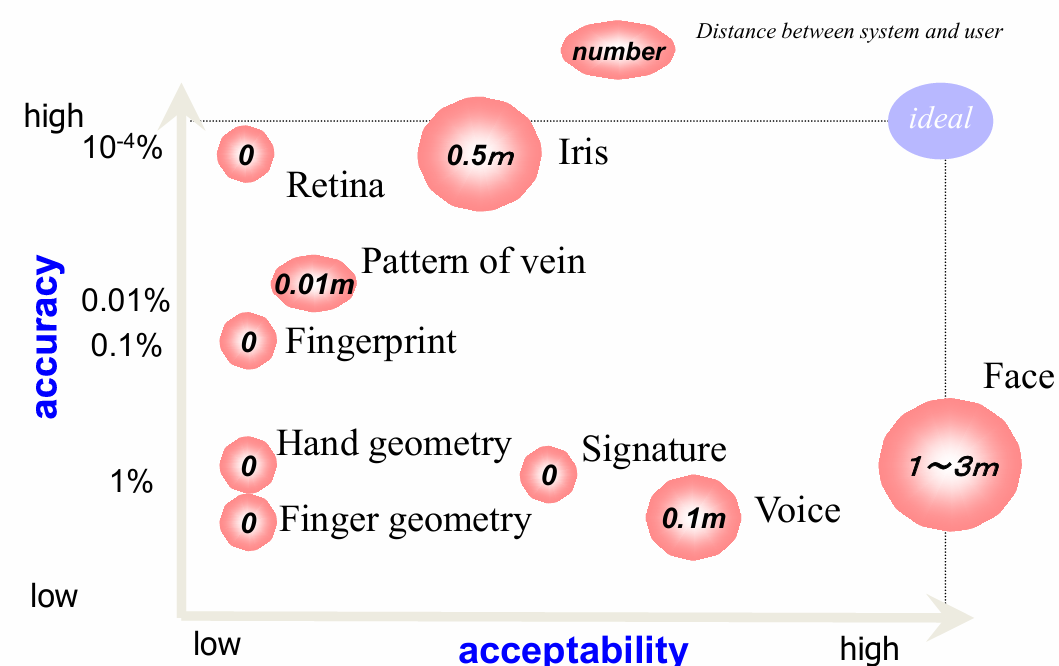

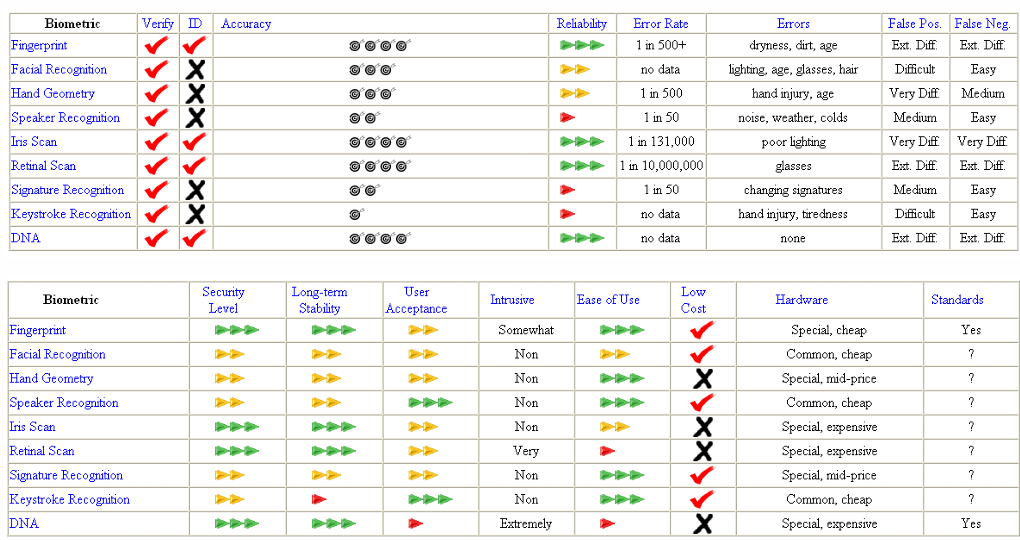

Deployment Challenges & Comparison

• Application perspective; privacy and social concerns.

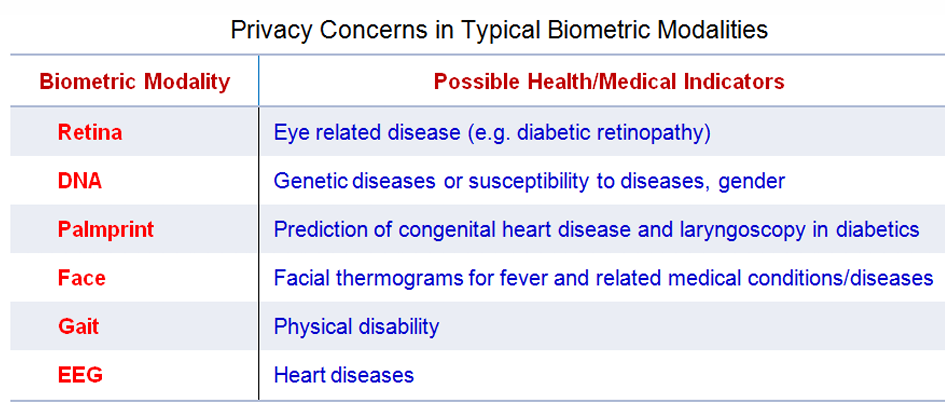

Biometric Data Sensitivity

Irreversibility

Biometric traits cannot be reset; compromise is permanent.

Identity Theft

Stolen iris/fingerprint may enable impersonation in high-security contexts.

Storage & Protection

• Encrypt templates; strong access control; avoid raw images.
• Minimize collection; anonymize; clear retention policies.

Compliance & Ethics

• GDPR/PIPL: consent, cross-border rules, deletion.
• Risks: surveillance, discrimination; mitigate via transparency & audits.

Fingerprint — Techniques

Acquisition

• Optical (FTIR, sheet prism), electro-optical, solid-state (capacitive/thermal/e-field), ultrasound, sweeping.
• Specs: 500 dpi standard; sensing area; dynamic range.

Types & Quality

• Rolled, plain, latent; SNR/MTF quality metrics.

Classification

• Pattern area, core, delta, type lines; classes: whorl, loops, arch.

Feature Extraction

Enhancement

Minutiae Extraction

Binarization → thinning → crossing number (termination if cn(p)=1, bifurcation if cn(p)=3).

Matching

Correlation-based vs minutiae-based; relative minutiae representation (r, A_s, A_θ).

Iris Recognition — Techniques

• Acquisition: NIR illumination (700–900nm), ≥200 px across iris.
• Segmentation: pupil and limbic boundary detection.
• Normalization: rubber-sheet model.
• Feature extraction: Gabor filters → binary iris code.
• Matching: Hamming distance; handle non-ideal imaging conditions.

Multimodal Biometrics Systems

Why

Addresses noise, intra-class variation, spoofing, non-universality by combining modalities.

Operational Modes

• Serial, parallel, hierarchical.

Scenarios

• Multiple sensors/biometrics/units/snapshots/matching algorithms.

Fusion Levels

• Feature-level: concatenate/selection (dimensionality issues).
• Score-level: sum/max/product/weighted; logistic/SVM.
• Decision-level: majority voting, rank fusion, Bayesian fusion.

Examples

• Palmprint+face (touchless) score fusion → improved FAR/FRR.
• Palmprint+hand geometry → counters fake hand attacks.
